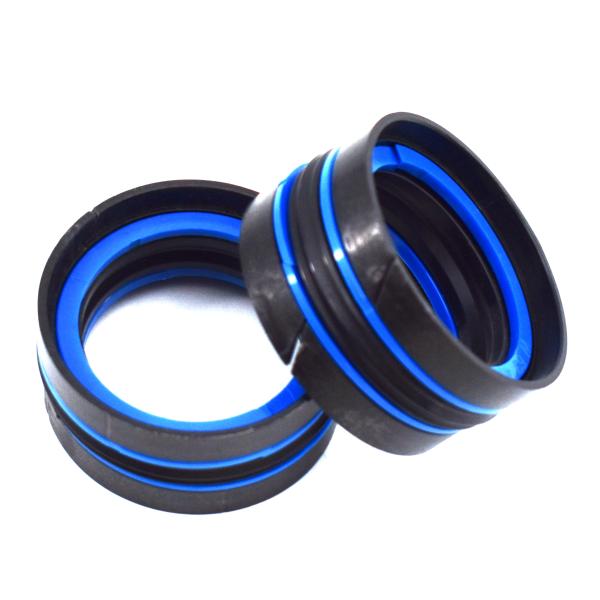

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Name: Excavator Hydraulic Piston Seal Repair Kdas For Construction Machinery Oil Seals 6044
Brand: ZHIPAN/YOUC
Price: 1 USD

China Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44 wholesale

Brand Name : ZHIPAN/YOUC

Model Number : KDAS

Certification : UDEM

Place of Origin : Guangdong, China

MOQ : 10pcs

Price : Negotiable price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs per week

Delivery Time : 5-8 work days

Packaging Details : PP bag ,carton, pallet

Material : NBR+POM

Temperature Range : -30°C to 100°C

Operating Speed : Up to 5 m/s

Hardness : 90-95 Shore A

Pressure Range : 0 to 400 bar

Elongation At Break : 400-500%

Seal Type : Piston Seal

Color : Blac&Blue

Contact Now

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Product Descriptions

KDAS Piston Seal, the combination seal ring is a double acting piston seal ring, two retainers, and two wear-resistant rings. There is a real sealing element in the middle; There are setting a retaining ring and a wear-resistant ring on each side. Besides, the retaining ring prevents the sealing ring from being squeezed into the clearance. The sealing ring in the middle is a dentate sealing ring, which can play a good role in static and movement. In addition, the wear ring ACTS as a guide to the piston in the cylinder and bears the radial force.

Product parameters

Product of Origin	Guangzhou,China
Product of Shippment	Guangzhou,China
Product Application	Excavators,Loaders,Breakers ,Graders and Other Construction Works
Products name	KDAS/DAS
Material	POM / TPU polymer or NBR
Color	Black +Blue
Sizes	20~250mm
Pressure	0~35MPa
Temperature	-30℃ +120℃
Speed	0.5m/s
Dimension	Oversize Dim0.030
Service	Can be wholesale,Retail and Custom-made
Medium	petroleum base hydraulic oil,nonflammable hydraulic oil, environmental protection hydraulic oil
Feature	High Temperature Resistance,High Pressure Resistance,High Wear Resistance
Application industries	Machinery RepairShops,Construction &Excavation Machinery,Industrial Hydraulic Systems&Heavy Equipment

Product Advantages

Good sealing effect, also suitable for holding cylinders Insensibility against shock loads and pressure peaks
Capable of installation in closed grooves ofr reduced machining costs Easy installation.

Transverse Section‌

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44 Product Display

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Size Details

KDAS	20*11
KDAS	22*13
KDAS	25*15
KDAS	25*16
KDAS	28*19
KDAS	30*21
KDAS	32*22
KDAS	32*22
KDAS	32*24
KDAS	35*25
KDAS	35*25
KDAS	40*24
KDAS	40*26
KDAS	40*30
KDAS	40*30/1
KDAS	40*32
KDAS	42*28
KDAS	45*29
KDAS	45*31
KDAS	45*35
KDAS	50*34
KDAS	50*34
KDAS	50*38
KDAS	55*39
KDAS	55*39
KDAS	56*40
KDAS	60*44
KDAS	60*44
KDAS	60*48
KDAS	63*47
KDAS	63*51
KDAS	65*49
KDAS	65*50
KDAS	70*50
KDAS	70*54
KDAS	70*58
KDAS	75*55
KDAS	75*59
KDAS	80*60
KDAS	80*62
KDAS	80*66
KDAS	85*65
KDAS	90*70
KDAS	90*72
KDAS	90*76
KDAS	95*75
KDAS	100*80
KDAS	100*75
KDAS	100*82
KDAS	100*86
KDAS	105*80
KDAS	110*85
KDAS	110*92
KDAS	110*96
KDAS	115*90
KDAS	115*97
KDAS	120*95
KDAS	120*106
KDAS	125*100
KDAS	125*103
KDAS	125*108
KDAS	130*105
KDAS	130*105
KDAS	135*110
KDAS	135*110
KDAS	140*115
KDAS	140*115
KDAS	140*123
KDAS	140*118
KDAS	145*120
KDAS	150*125
KDAS	150*125
KDAS	150*128
KDAS	150*133
KDAS	150*130
KDAS	160*130
KDAS	160*135
KDAS	160*143
KDAS	165*140
KDAS	170*145
KDAS	170*148
KDAS	175*150
KDAS	180*155
KDAS	180*150
KDAS	185*160
KDAS	190*165
KDAS	195*170
KDAS	200*175
KDAS	200*170
KDAS	210*185
KDAS	220*195
KDAS	220*190
KDAS	230*205
KDAS	240*215
KDAS	250*225
KDAS	250*220
